ADA Warning Tiles feature a distinctive pattern of raised domes which provide a perceptible detection by cane or by foot warning of an impending pedestrian crossing. In accordance with ADA regulations, raised truncated domes have a diameter of nominal 0.9″, a height of nominal 0.2″, a center-to-center spacing of 1.6″ minimum and 2.4″ maximum. Tiles are “created” using tiles of various sizes: 24″x36″, 24″x48″, 24″x60″, 36″x48″, or 36″x60″. Fabricated of a homogeneous glass and carbon composite which is colorfast and UV stable; standard colors include: Federal Yellow, Brick Red, Clay Red, Dark Grey and Black. Tiles are Replaceable, Surface Mount (includes fasteners and adhesive) and Cast-In-Place.

Tuftile ADA Polymer Warning Tiles are made of advanced proprietary polymers and are engineered with molded in-line truncated domes which are in full compliance with ADA guidelines and provide superior impact and slip resistance. TufTiles are also highly resistant to UV rays, weather, and a wide variety of chemicals. Tuftile Polymer Tiles are made of advanced proprietary polymers and are engineered with molded in-line truncated domes which are in full compliance with ADA guidelines and provide superior impact and slip resistance. TufTiles are also highly resistant to UV rays, weather, and a wide variety of chemicals.

The Americans with Disabilities Act (ADA) “recognizes and protects the civil rights of people with disabilities.” One sector of the ADA mandates that newly constructed pedestrian street crossings – curbs, curb ramps, blended transitions, rail crossings, medians and refuge islands – have detectable warnings for visually impaired individuals. The government also recommends retrofitting existing pedestrian street crossings wherever possible.

Features:



  • ADA compliant for wet and dry, slip-resistant surface
  • Easy and fast installation, bilingual step-by-step installation instructions
  • Beveled edges meets “trip hazard” requirements
  • Replaceable
  • Long term durability
  • Recyclable
  • Made in USA
  • Colors: Brick Red – FED 22144, Yellow – FED 33538, Dark Gray – FED 36118, Colonial Red – FED 20109, Black – FED 37038, Safety Red – FED 31350, Patina also available.

Made in the USA

Domestically produced iron is cast in USA to comply with all Federal, State, and local sourcing requirements for metal products – BUY AMERICAN compliant
TufTile supports all claims with sourcing and production documentation that is often required by governmental procurement departments

Contact our Sales team today to discuss your project! We carry other vendor product lines. Call 800.338.5685 or email > sales@gshpinc.com

Polymer

ADA-TufTile_Red2

Cast Iron

ADA Warning Tiles

Radius

ADA-TufTile-Radius

Please contact our sales department for a quote sales@gshpinc.com or call 800.338.5685.

Tuftile® High-Impact Polymer ADA Warning Tiles

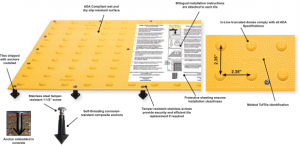

Wet-Set / Replaceable  Tuftile® High-Impact Polymer Tiles Wet-Set / Replaceable

Engineered for superior impact resistance, slip resistance, and long term durability.

Tuftile’s Polymer Wet-Set (cast-in-place) Tiles are replaceable high-impact detectable warning tiles designed for years of use on municipal (public) and private sidewalks, pedestrian ramps and platforms. Polymer Wet-Set tiles utilize a factory installed umbrella style anchor system with stainless steel, tamper resistant fasteners for easy installation into wet concrete applications.

In developing TufTile we focused on both the polymer used in the production of our tiles and on the geometry of the tile. TufTile detectable warning tiles are designed with features that will ensure years of trouble-free performance.

  • TufTile’s High-Impact Polymer Tiles
  • Compliant with all ADA Specifications
  • Made with advanced proprietary polymers
  • Engineered for superior impact resistance and slip resistance
  • Long term durability
  • Easy installation
  • Replaceable
  • Recyclable
  • Made in USA

Fastening System/Accessories  Molded from a super tough polymer, wet-set anchors are corrosion-proof

  • Our concrete anchors are pre-installed using stainless steel screws in each wet-set tile
  • Molded from a super tough polymer, wet-set anchors are corrosion-proof
  • Our “umbrella” style anchor easily penetrates into wet concrete
  • TufTile wet-set tiles are REPLACEABLE and wet-set anchors can be used multiple times

Polymer Connectors  ADA Warning Mats

  • Simplify installation by connecting polymer tiles together
  • Create a single unit of tiles and install them all at one time



Dome Layout

  • In-Line truncated domes comply with all ADA specifications
  • North-South & East-West spacing is 2.35"
  • The TufTile name is molded into every part identifying us as the manufacturer for
    future reference
  • When installing multiple TufTiles maintain a 3/32" gap between them. TufTile
    remain ADA compliant when tiles are properly installed

Replaceability

  • TufTiles are replaceable. Replacement is an economic alternative to concrete replacement
  • Anchor holes and panel depth is uniform between products. TufTile Wet-Set tiles and Surface-Applied are designed to last for years in normal wear & tear, urban environments. We recognize that abnormal things can happen and at times tiles may need to be replaced. The fact that TufTiles are replaceable offers a community or private property owner a longer life-cycle cost savings vs a concrete tear-out and re-pour.

Polymer Material  ADA Warning Mats

TufTile's ADA Tiles are manufactured with an advanced proprietary polymer
that offers exceptional performance characteristics.

  • UV Stability – integrated throughout the polymer
  • High-impact resistance
  • Abrasion resistance
  • ADA compliant wet & dry slip-resistant surface
  • Overall long-term durability
  • Homogenous color
  • integrated throughout the polymer
  • TufTiles are 100% recyclable

Cast Iron ADA Warning Tiles

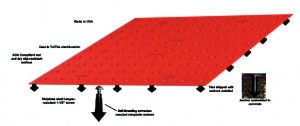

Wet Set (cast-in-place)  ADA Warning Mats

TufTile's Cast Iron ADA Warning Tiles are manufactured domestically with durable cast iron that offers exceptional performance characteristics. TufTile detectable warning products are designed with features that will ensure years of trouble-free performance.

TufTile's Cast Iron ADA Warning Tiles

  • Compliant with ADAAG / PROWAG / CA Title 24
  • Durable rust resistant finish on all tile color options
  • Great for use in areas where heavy tile abuse is possible  including areas subject to snowplowing
  • ADA compliant wet & dry slip-resistant surface
  • Cast iron wet-set tiles are for new construction
  • Unique “umbrella” style anchors lock tile securely into concrete
  • Uniform tile underside eliminates trapping air during installation
  • Made in USA
  • Patent No. US D691,743 S

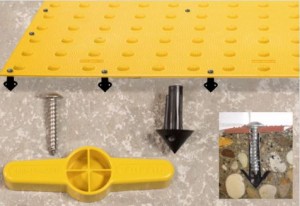

Fastening System/Accessories

Unlike flat bottom type wet set anchors, TufTile's umbrella style anchor easily penetrates wet concrete. Aggregate within the concrete is not pushed down but moves to the side temporarily as the anchor penetrates. Aggregate can then fall back
over the umbrella and the anchor becomes firmly integrated with the concrete.

Wet-set anchors are permanently locked in wet concrete. TufTile wet-set tiles are REPLACEABLE and wet-set anchors
can be used multiple times in the event a tiles needs to be replaced.

  • Molded from a super tough polymer, wet-set anchors are corrosion-proof
  • Self-threading fastener ports hold-tight with our #14 tamper-resistant stainless steel weather-resistant screws
  • Anchors & fasteners are factory pre-installed on tiles
  • Our “umbrella” style anchor easily penetrates into wet concrete mix

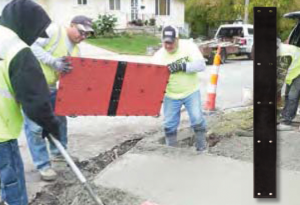

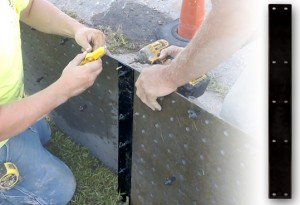

Cast Iron Polymer Connectors  ADA Warning Mats

  • Simplify installation by connecting cast iron tiles together
  • Create a single unit of a couple tiles for perfect alignment

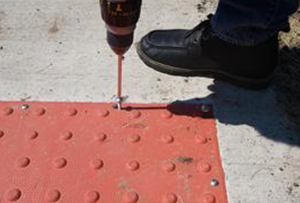

Replaceability  ADA Warning Mats

  • TufTiles are replaceable. Replacement is an economic alternative to concrete replacement
  • Anchor holes and panel depth is uniform between products. TufTile Wet-Set tiles and Surface-Applies are designed
    to last for years in normal wear & tear, urban environments We recognize that abnormal things can happen and at times tiles may need to be replaced. The fact that TufTiles are replaceable offers a community or private property owner
    a longer life-cycle cost savings vs a concrete tear-out and re-pour

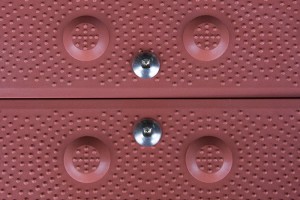

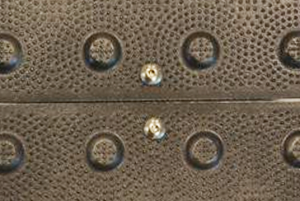

Dome Layout  ADA Warning Mats

  • In-Line truncated domes comply with all ADA specifications
  • North-South & East-West spacing is 2.35″
  • The TufTile name is molded into every part identifying us as the manufacturer for future reference
  • Occasionally, detectable warning tiles will need to be butted together to form longer and wider surfaces.
    TufTile remain ADA compliant when tiles are properly butted together

Radius  ADA Warning Mats

Radius Wedges in both Polymer and Cast Iron ADA Warning Tiles allow for fast, easy, compliant installation of most radius corners from 8’ to 70’ radii with no tile cutting. This results in a seamless radius installation with consistent dome spacing every time. TufTile® Radii are made by using wedges and tiles in any combination. Four wedge sizes and five tile sizes combine to form a wide range of dimensions.Elevations remain equal and dome alignment consistent, piece-to-piece, reducing installer error. Wedges are factory pre-sized and designed to fasten to detectable tiles to form perfect radius assemblies. Very little field modification (tile cutting) is required. Only the very left-most and right-most tiles may need to be modified in field.

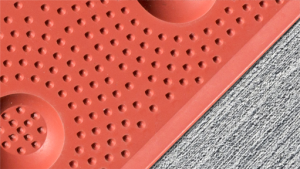

Surface Applied Beveled Edges  ADA Warning Mats

Tiles have a smooth transition between the TufTile and other surfaces in addition to meeting ADA requirements.

Radius Calculator

TufTile® Radii are made by using wedges and tiles in any combination. Use the Radius Calculator to determine the exact size of your radius, materials and configuration.  > Radius Calculator

EASYARC Radius Calculator Mobile App

Mobile App for iPhones and Android devices. With 2 measurements, determine the size of your radius, anywhere. Using your measurements, EasyArc determines the arc length, materials, and overall fit. It also provides the ability to draw your installation. > Download App
