Barrier mounts and guide rail reflectors and delineators are beneficial at locations such as lane-reduction transitions and curves and provide effective guidance at night and during adverse weather conditions. GSHP has surface and ground mount applications available. Hydrant, Utility Line and Snow Pole Markers are used to identify objects in high grass and snow. There are many styles to choose from to suit every application. Specify options when ordering. Visit our ground mount section. If a particular item is not shown on our site, please call 1.800.338.5685 for an account executive for assistance.

Barrier Mount

Delineators Reflectors

JD Cube Marker

JD Cube Marker

Flexible Hinged

Hinged marker

Barrier Marker

9", 12" 15" and 16" top and side mount applications

FT Flex-Tab

FT Flex-Tab

Little / Big Dog

Barrier Mount

Aluminum Delineators

Barrier Mounts & Guide Rail Reflectors

Ground Mount Flex (Poly)

Flex Delineator

Round Button
Steel Delineators

Round button guiderail

Butterfly Steel
& Poly

Poly steel

Guide Rail Delineators

High Impact Guiderail Delineators

Fat Cat
Guide Rail Marker

Guide rail Marker

FG 427 & FG 527
Markers

Delineators Reflectors

S-Flex Guide Rail
Marker Posts

guide-rail post

Pexco DAPCO
Adhesive

bonding concrete

Barrier Mount

Barrier Mounts & Guide Rail Reflectors

Barrier Mount Barrier delineators provide effective guidance at night, in low light and in adverse weather conditions. Yellow and White delineators shall be the same color as the roadway edge line.

.

  • A wide-angle delineator for extra visibility on short radius curves and around obstructions
  • Reflective Colors: Yellow, White, and Red
  • Marker Size: 2.1” x 3.9” wide
  • Reflective Size: 7 square inches of reflective sheeting
  • Meets the minimum MUTCD requirements for reflectivity

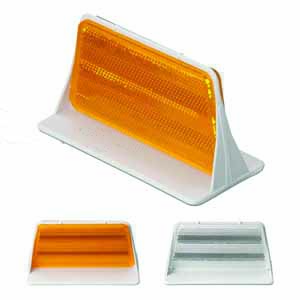

JD Cube Marker Barrier Mounts & Guide Rail Reflectors

  • Delineates the barrier far in advance to approaching drivers
  • The JD Cube is the largest acrylic cube corner delineator in the industry
  • The JD Cube is bright! More than two times brighter than requirements for prismatic reflectors as shown by state photometric tests
  • Size: 3” high and 5 1/2” wide> Marker Material: ABS and Acrylic
  • Reflective Colors: Yellow or White
  • Single-Face (SF) or Double-Faced (DF)
  • Meets the minimum MUTCD requirements for reflectivity and exceeds all state and federal brightness standards

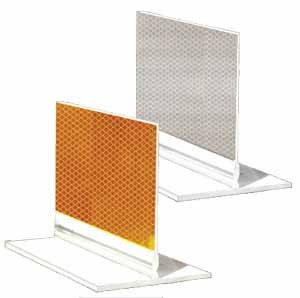

Flexible Hinged 9” Marker Barrier Mounts & Guide Rail Reflectors

  • A hinged marker that mounts to the top or side of barrier wall
  • Use for temporary work zone traffic control or permanent applications
  • Reflective Sheeting Size: 9 square inches
  • Single-Face (SF) or Double-Faced (DF)
  • Reflective Sheeting: White or Yellow High Intensity Prismatic
  • Other colors and sheeting available

Barrier Marker 9”, 12”, 15” and 16”

9", 12" 15" and 16" top and side mount applications

  • Barrier Markers can be used for top or side mount applications
  • Use for temporary work zone traffic control or permanent applications
  • An economical barrier mount reflector
  • Reflective Sheeting: White or Yellow High Intensity Prismatic
  • Reflective Sizes and square inches of sheeting:
    • 3” x 3” – 9 square inches of reflective sheeting
    • 4” x 3” – 12 square inches
    • 3” x 5” – 15 square inches
    • 2” x 8” – 16 square inches (not pictured)
  • The Barrier Marker-16 is designed to be mounted on top of a standard 32-inch barrier wall
  • Single-Face (SF) or Double-Faced (DF)
  • Meets the minimum MUTCD requirements for reflectivity
  • Other colors and sheeting available

Flexible Hinged 12” Marker (FT Flex-Tab)

FT Flex-Tab

  • Mount to the top or side of barrier wall
  • Use for temporary work zone traffic control or permanent applications
  • Material: high impact polycarbonate
  • Size: 3” x 4.375”
  • Single-Face (SF) or Double-Faced (DF)
  • Add Reflective Sheeting and colors of your choice

Little Dog – Big Dog

Barrier Mount

  • Mount to the top or side of barrier wal
  • lThe Little Dog is a bit smaller than the Big Dog, but still provides incredible brightness with 72 square inches of reflective sheeting equaling 6”x12”
  • Both Dogs are for top mount applications and feature 96 inches of reflective sheeting equaling 8”x12”
  • Use for temporary work zone traffic control or permanent applications
  • The added brightness gives motorists additional response time when driving through hazardous areas day and night
  • Colors: Fluorescent Orange sheeting
  • Reflective Sheeting: Diamond Grade Cubed or VIP Diamond Grade
  • Reflective Size: 96 square inches of reflective sheeting
  • Single-Face (SF) or Double-Faced (DF)
  • Meets the minimum MUTCD requirements for reflectivity
  • Other colors and sheeting available

Aluminum Delineators

Guiderail Mount

  • Sizes: 4” x 8” Rectangle, 5” Diamond, Center Mount 4” Square and 3.25” Round Button
  • Fasten to all types of posts with hardware, sold separately
  • Provides 32” square inches of reflectivity
  • Reflective Sheeting mounted on .080” Aluminum
  • 2 (two) mounting holes top/bottom on center
  • Reflective Sheeting: High Intensity Prismatic (H), VIP Diamond Grade (D, DG3 Diamond Grade Cube (3), or Engineer Grade (E)
  • Colors: Yellow, Fluorescent Yellow, White, Red, Green, and Orange

Ground Mount Flex (Poly)

Flex Delineator

  • Round Button3.25” diameter lens comes in white, yellow, red, blue and green, one sided or two sided
    7 square inches of reflectivity
  • Excellent visibility during general road conditions
  • Provides increased safety during inclement weather situations
  • Easy fit and glue on installation into the channel of the guide rail. Glue Sold Separately
  • High impact polycarbonate bracket

Round Button Steel Delineators

Round button guiderail

  • 3.25” diameter lens comes in white, yellow, red, blue and green one sided or two sided
    7 square inches of reflectivityMounts with existing guide rail bolts in the center channel
  • Meets or exceeds photometric standards
  • Heavy duty galvanized bracket, riveted reflector

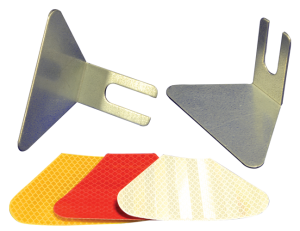

Butterfly Steel and Poly Delineators

Poly steel

Delineators

  • Sizes: 4” x 8” Rectangle, 5” Diamond, Center Mount 4” Square and 3.25” Round ButtonBig, bright, and economical in steel or plastic versions
  • 8 square inch delineator installs with existing guide rail bolts
  • Butterfly shape fits in the center channel for protection from accidental damage or vandalism\
  • Engineer or Hi-Intensity grade sheeting
  • Yellow or White, single or double faced
  • Bolt-on style best suited for installation during initial guide rail construction
  • Glue-on style can be used at any time because installation does not require the loosening and re-tightening of existing guide rail bolts
  • Slot or bolt hole style
  • Specify options when ordering
  • Poly is rugged polycarbonate bracket won’t shatter on impact

FG 427 and FG 527 Markers

Delineators Reflectors

  • Mount 4” Square and 3.25” Round Button Mounts to wood or steel guide rail posts
  • Flexible, impact resistance, and high visible
  • Impact Resistance: capable of withstanding impacts from wide loads, overhanging maintenance equipment, mowers, etc.
  • Post Sizes: 3” x 27” and 4” x 27”
  • Post Body Colors: Yellow, White or Grey (grey is available in 3” only)
  • Profiles: 3” Dual Curve, 3” Single Curve, 4” Single Curve

High Impact I-Beam Guide Rail Mounted Delineator

High Impact Guiderail Delineators

  • Sizes: 4” x 8” Rectangle, 5” Diamond, Center Mount 4” Square and 3.25” Round Button
  • Flex Rail body will retain original shape after being hit repeatedly
  • Fits over steel I-beam guide rail posts with polyurethane hinge
  • Single or double faced> Sizes: 3” or 4”> 2 hinge styles available

The Fat Cat Guiderail Marker

Guide rail Marker

  • Over sized guide rail measuring 4”x15” and 3”x13”
  • Multiple reflector size options and reflective sheeting
  • Single or double faced
  • Easy to see in high-speed areas, work zones, dangerous curves and intersections
  • More visible in low light conditions

Pexco DAPCO Adhesive  bonding concrete

A one-part, fast cure adhesive, for bonding concrete barrier markers, guide Rail reflectors and other delineation products. This adhesive requires no mixing, is effective over a broad temperature range, has excellent weathering properties and offers “primer-less” adhesion to concrete, asphalt and steel. Used with standard caulking gun.

* Learn about Reflective Barrier Delineation from the FHWA.
