Surface Mount Delineators and Channelizers Solutions

Surface Mount Delineators and Channelizers reduce maintenance costs and increases visibility and safety. Pexco’s Roadside Delineator Posts are made from our HDPE plastic, and are the quick, maintenance-free solution for better driver awareness. Roadside Delineator posts can be placed at critical points along roadways at winding curves, near intersections, and at on-and-off ramps to identify safety hazard areas.

City Post
Glue Down

Surface Mount Delineator

City Post
Model SM

surface mount delineator

City Post EAC
Anchor Cup

surface mount delineators

Safe-Hit
Delineators

Surface Mount Delineators

DP 200
Series Post

Surface Mount Delineators

FG 300
Surface Mount

Surface Mount Delineators

FG 300 IS
Curb System

surface mount delineators

FG 300 Turnpike
Curb System

Surface Mount Delineators

FG 300
Heavy Duty Base

Heavy Duty Base

DP 200
Black Base

surface mount base

FG 300
Metro Base

Surface Mount Delineators

FG 300
Lite Black Base

surface mount delineators

10# Rubber
Cookie Base

Surface Mount Delineators

35# Portable
Banana Base

Surface Mount Delineators

FG 300
Invisi-Base

Surface Mount Delineators

Pexco® City Post Model GD Glue Down

The City Post GD Glue Down remains flexible and continues to fully rebound even after over 100 hits at 70 mph! It meets MUTCD and NCHRP 350 requirements for channelizing devices and was tested at high speeds by TTI (Texas A&M Transportation Institute).

  • 3” Round Channelizer Post
  • Thermoplastic Polyurethane for high impact resistance
  • Crash friendly design
  • 1-piece construction with no mechanical springs to fail
  • 360° of visibility with factory-applied reflective sheeting
  • Installs in either concrete and asphalt
  • Traditional bolt-down design
  • Standard colors are white, black, yellow, and fluorescent orange
  • UV resistance keeps the City Post looking fresh and new after prolonged periods in the elements
  • Impact tested, MUTCD and NCHRP 350-compliant
  • FDOT DEV993 Approved (36” with FIRMmarker (EAS-06) epoxy)
  • Available in three sizes: 36”, 42”, and 55” heights for heightened visibility
  • 1-year limited warranty

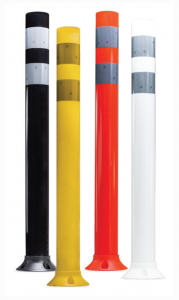

Pexco® City Post Model Surface Mount

The City Post SM Surface Mount remains flexible and continues to fully rebound even after 100 hits at 70mph! It meets MUTCD and NCHRP 350 requirements for channelizing devices and was tested at high speeds by TTI (Texas A&M Transportation Institute).

  • 3” Round Channelizer Post
  • Thermoplastic Polyurethane for high impact resistance
  • Crash friendly design
  • 1-piece construction with no mechanical springs to fail
  • 360° of visibility with factory-applied reflective sheeting
  • Installs in either concrete and asphalt
  • Traditional bolt-down design
  • Standard colors are white, black, yellow, and fluorescent orange
  • UV resistance keeps the City Post looking fresh and new after prolonged periods in the elements
  • Impact tested, MUTCD and NCHRP 350-compliant
  • FDOT DEV993 approved (36” with Hilti Coil Anchors)
  • 36” with Hilti Coil Anchors
  • Available in three sizes: 36”, 42”, and 55” heights for heightened visibility
  • 1-year limited warranty

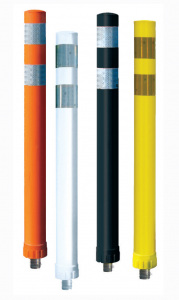

Pexco City Post EAC Anchor Cup – The Original!

Designed for superior durability and quick replacement, the spin-in City Post EAC sets new standards for performance in the field and ease of maintenance.

  • 3” Round Channelizer Post
  • Thermoplastic Polyurethane for high impact resistance
  • Crash friendly design
  • 1-piece construction with no mechanical springs to fail
  • 360° of visibility with factory-applied reflective sheeting
  • Installs in both concrete and asphalt
  • Easy “spin-in” installation speeds up maintenance
  • Standard colors are white, black, yellow, and fluorescent orange
  • Optional colors are red, blue, green, fluorescent green, light gray, and steel gray
  • Custom colors are available to match school or logo colors
  • UV resistance keeps the City Post looking fresh and new after prolonged exposure to the elements
  • Impact tested, MUTCD and NCHRP 350-compliant
  • 1-year limited warranty

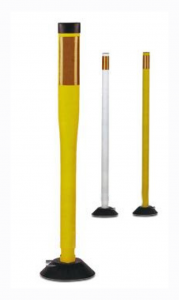

Safe-Hit Surface Mount Delineators

Durable and flexible for multi-purpose use
Safe-Hit’s flexible posts are constructed of durable linear low density, co-extruded polyethylene with ultraviolet inhibitors. They are available with portable bases, surface mount bases or soil anchors. Safe-Hit posts feature a two piece, self-locking system that reduces installation and maintenance costs. The Safe-Hit Line is ideal for applications with average impact frequency.

Safe-Hit surface mount posts have many features and benefits valued by roadway professionals, including:

  • Delineating parking construction zones, center-line medians and H.O.V. lanes
  • Bases that feature either pin-lock or twist-lock systems
  • Posts that come in a variety of heights, shapes and colors to accommodate different reflective configurations
  • Bases capable of being reused when installed with butyl – Epoxy is recommended for permanent applications
  • Easy installation on asphalt or concrete
  • Twist-lock feature allowing quick replacement, which reduces maintenance crew traffic exposure

Typical applications include markers for:

  • Channelization
  • Culverts
  • Motorist aid call boxes
  • Median crossovers
  • Objects / hazards
  • Bridges
  • Gore points
  • Drains
  • Island ends

A Safe Hit Surface Mount Starter Kit is also available which includes 10 Safe-Hit posts, 10 SMA or SMT bases and 10 Epoxy kits or Butyl pads.

Surface mount and twist lock base assemblies, for installation of channelizers on asphalt or concrete, include:

  • SMA Standard surface mount base with locking pins for use where posts are permanently installed
  • SLT Sub-level twist lock base where it is desirable to have the base level with the concrete or asphalt surface. Highly recommended where foot traffic is present
  • SST Sub-surface twist lock base where a low profile is desired due to vehicular or foot traffic
  • SMT Twist lock base, for use where delineators or sign posts must be installed, removed and reinstalled periodically
  • PSB Portable Base for temporary use of posts and signs
  • Sizes Available: 18″ to 48″

Note: A plastic insert (removable plug) is also available for all bases to protect against dirt accumulation and to protect foot traffic when post is removed.

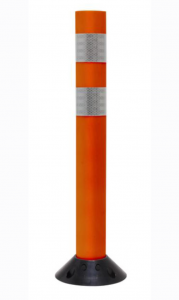

DP 200 Series Post

The DP 200 Series post is a 3-inch round channelizer made of polyurethane, the toughest flexible plastic available. To reduce the risk of accidents, place durable polyurethane channelizer posts at critical points along your roadways where safety hazards exist.

  • 3” Round Channelizer Post
  • Made of Highly Durable Thermoplastic Polyurethane for High Impact Resistance
  • 360° of Reflective Visibility
  • Stands Up to Extreme Temperatures
  • No Metal Parts to Rust or Seize
  • Ultraviolet Resistant
  • 1-Piece Post Construction
  • Simple Installation
  • NTPEP Tested
  • MUTCD Compliant
  • Sizes up to 48″ tall

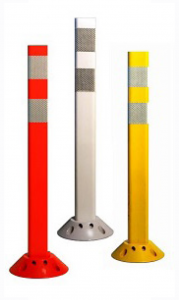

FG 300 Surface Mount

The upright post is the durable and incredibly tough

  • The 2 part system uses a permanent anchor and replaceable upright post
  • They are easy to install by hand or using common tools
  • The anchor is a common 2” square PSST sleeve
  • A single pin allows for quick and easy replacement of damaged posts
  • Sizes: 18”, 24”, 30”, 36”, 42”, 42”

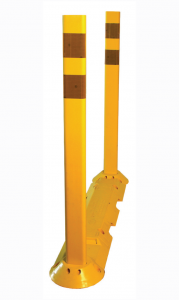

FG 300 Interstate Grade Curb System

The FG 300 Interstate Grade Curb System is a lane separation system that provides efficient and cost effective channelization of traffic on freeways, toll-ways, city streets and rail-highway at-grade crossings. This one-piece curb system links together for a continuous “picket fence” effect and consists of modular raised curb sections mountable by emergency vehicles. The Interstate Grade Curb System features our FG 300 EFX uprights, the toughest channelizer posts on the market.

  • Low maintenance; super-tough polyurethane posts impact tested at 70 MPH / 112 km/h
  • Curb sections install in just minutes with one person
  • Installs with 4 bolts, or adhesive for temporary projects
  • Design allows for curved or circular installations for roundabouts
  • Only curb and post combination warranty in the industry: 5-year limited prorated warranty on curb unit; 1-year limited warranty on the EFX upright post
  • MUTCD-compliant & NCHRP 350 approved (FHWA Letter #WZ-193)

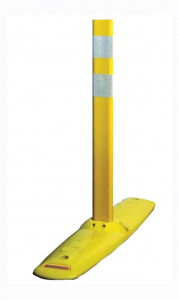

FG 300 Turnpike Grade Curb System

The FG 300 Turnpike Grade curb system is a raised lane separator with durable upright channelizer posts that provide efficient and cost-effective channelization of traffic on Managed Lanes, 2-way 2-lane Work Zones, and other areas where discontinuous channelization is desired. The picket fence effect divides lanes going in the same direction or opposite direction in high-speed, high-volume applications where continuous curb is too costly or not needed. Use where pavement markings alone are not sufficient to safely channelize traffic.

  • Low maintenance; super-tough polyurethane posts impact tested at 70 MPH / 112 km/h
  • Engineering polymer alloys for superior toughness at all temperature extremes
  • Engineered to stand up to the toughest of conditions
  • Only requires 4 bolts per unit, quick & easy to install
  • Installs with bolts, or adhesive for temporary projects
  • Only curb and post combination warranty in the industry: 5-year limited prorated warranty on curb unit; 1-year limited warranty on the EFX upright post
  • MUTCD-compliant & NCHRP 350 approved. (FHWA Letter #WZ-282)

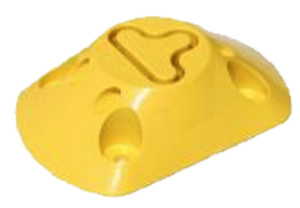

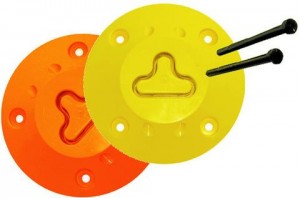

FG 300 Heavy Duty Base

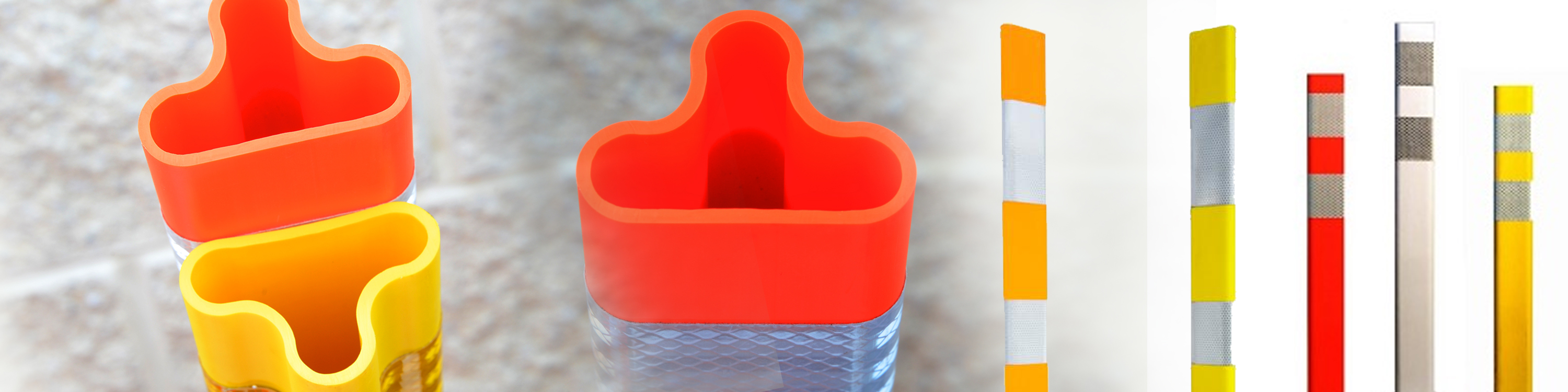

Pexco delineator posts utilize a clover leaf design providing far better rebounding than simple round tubes. Curving the sides of the tube changes the moment of inertia and builds up tremendous energy, resulting in a quick rebound when impacted.

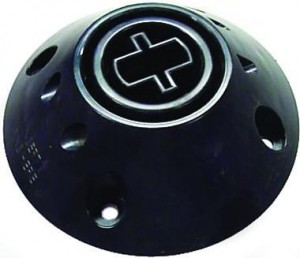

DP 200 Black Base

Standard surface mount base with quick-release pins for general purpose applications. Mounts with butyl pads, bitumen, epoxy or anchor bolts.

FG 300 Lite Black Base

Standard fixed base for general purpose installations. Installs easily to road surface with epoxy and bolts.

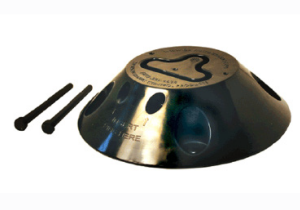

FG 300 Metro Base

Surface mount base for the FG 300 where space is a premium.

10# Portable Rubber Cookie Base

Designed for situations where the base and post will be moved frequently on and off the road surface. The lightweight ten pound base is ideal for school crosswalk applications because it is easily carried and moved.

35# Portable Banana Base

This portable, heavy-duty base has two recessed handles and two banana-shaped grooves for easy handling, stacking and storage. It has a smaller footprint than barrels, yet it requires no additional ballast. It has a fixed metal base plate for stability and durability. It features an easy assembly with Quick Release Pins that attach posts into place in seconds, and is resistant to repeated impacts. The new design works with the Lite Black Base, The Heavy Duty Colored Base, as well as the Parking Lot Sign Base.

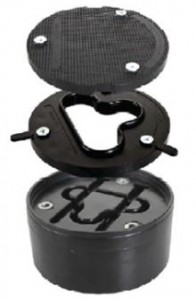

FG 300 Invisi-Base

The FG 300 Invisi-Base allows for channelizer posts to be flush-mounted. An optional winter cover allows post to be removed to accommodate snow plow operations, for an extremely clean installed look.

To learn more about Delineators view the MUTCD description.
