Directional LED Signs

Directional LEDs

Directional LED signs warn motorists of changing road conditions.

Directional LED blank-out lane control signs communicate traffic pattern changes. These blank-out signs can be used to alert motorists to reversible lane changes or warn them of a closed roadway or approaching turn restriction (No Left Turn).

Our LED changeable lane control signs can be engineered with a single message that illuminates when activated and blanks out (disappears) when deactivated. When signs are designed with multiple messages in a single sign, the messages can be engineered to display individually like the red X, amber X and green arrow reversible lane signs used in a reversible lane system. The LED sign message
can be words, symbols or both and can be designed to MUTCD LED layout guidelines. Our lane control signals and signs can be engineered to flash, display the messages in a specific sequence or be operated by an external device.

These directional LED signs withstand harsh weather and high vibratory conditions. Narrow-angled LEDs and photodimming are available for maximum visibility in all lighting conditions.

  • Class: DOT Series
  • Control Method: Switch (not included) or external relay
  • Cabinet: Extruded aluminum cabinet with welded seams, NEMA 4X rated/IP66.
    Hinged door with 1” silicone gasket, tool-less stainless-steel latches. 5.0” Deep
  • Face Material: Replaceable 1/4” thick smoke-tinted polycarbonate (5109)
  • Faces: Single or doubled faced signs
  • Finish: Powder coat black
  • Integral Hood: Optional hood available
  • Input Voltage: 12-24 VDC or 120-24 VAC
  • Photo dimming: (3) Redundant fail-safe photocells for auto photo dimming
  • Power Supplies: Redundant
  • UL/cUL Listed: Listed for wet locations
  • Illumination: Super bright direct view LEDs and message blanks out when off

Call to speak to an Account Executive at 800.338.5685.

R3-1
No Right Turn

Directional LED Signs

R3-2
No Left Turn

Directional LED Signs

R3-3
No Turns

LED Directional Signs

R3-4
No U-Turn

Directional LED Signs

R5-1
Do Not Enter

Directional LED Signs

Left | Right
One Way

Directional LED Sign
6″Wx18″Hx5″D

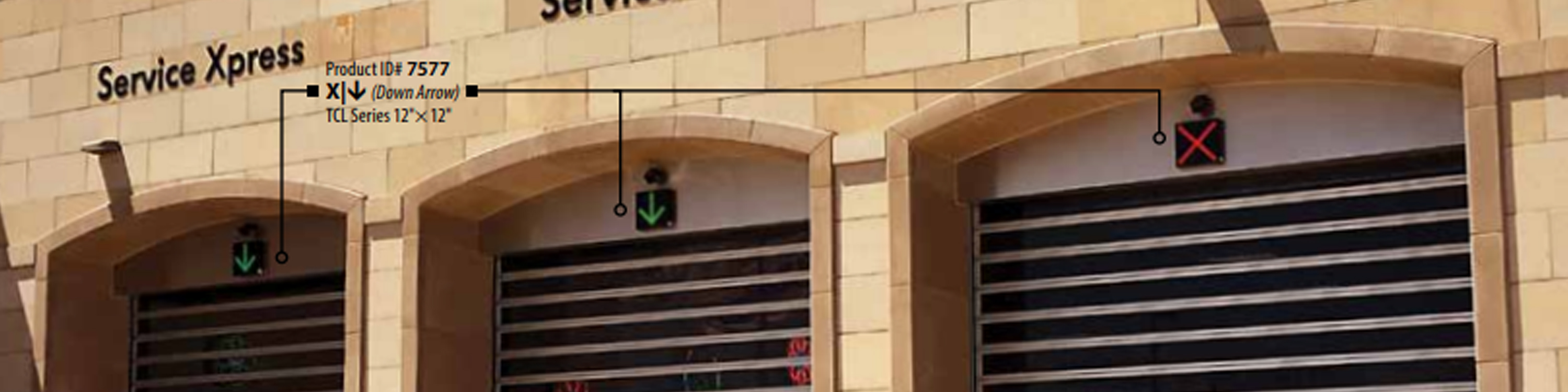

X-Down Arrow

Directional LED Signs
24″Wx24″Hx11.5″D

Single Down Arrow

Directional LED Sign
12″Wx12″Hx2.5″D

Amber | Green | Red

Directional LED Signs
12″Wx12″Hx2.5″D
Directional LED Sign Chart

Road Closed

Directional LED Signs
54″Wx36″Hx5.5″D

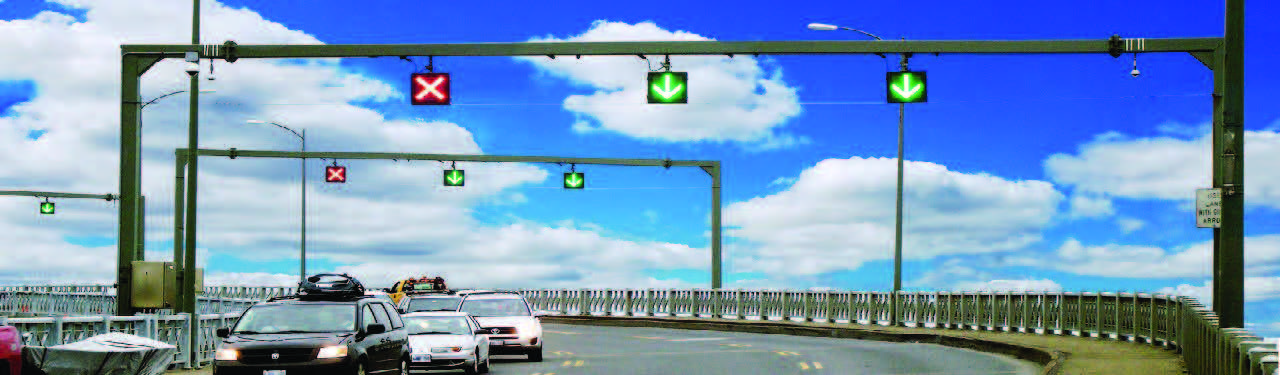

Reversible Lane and Toll Plaza Signs
Clearly define open lanes from a distance. Bold symbols use super-bright LEDs to make messages readable in direct sunlight.

Down Arrow

Directional LED Signs

Down Arrow

Directional LED Signs
Directional LED Signs
Directional LED Signs

PHX Series: Outdoor, Blank-out LED Backlit Signs
The PHX Series LED sign is designed with high-intensity, LED backlit illumination and a block letter-style message face. The sign
message illuminates when turned on and blanks out or disappears when off. PHX Series LED signs are guaranteed readable in
direct sunlight.

  • Light source: backlit, high-intensity LED
  • Cabinet depth: single faced 2-1/4″ deep; double faced 5-1/2″ deep minimum
  • Construction: one piece extruded aluminum frame with an 1/8″ thick grey acrylic face panel
  • Finish: duranodic bronze; optional finishes available
  • Electrical: input voltage 120–277VAC or low volt
  • 12–24V; UL/cUL listed for wet locations
  • Mounting: includes Lift ‘N Shift wall mount
  • Warranty five years

Open Closed Sign

Directional LED Signs PHX Series

Open Sign

Directional LED Signs PHX Series

Open Closed Sign

Directional LED Signs PHX Series

Cabinet
Construction Features

Directional LED Signs
