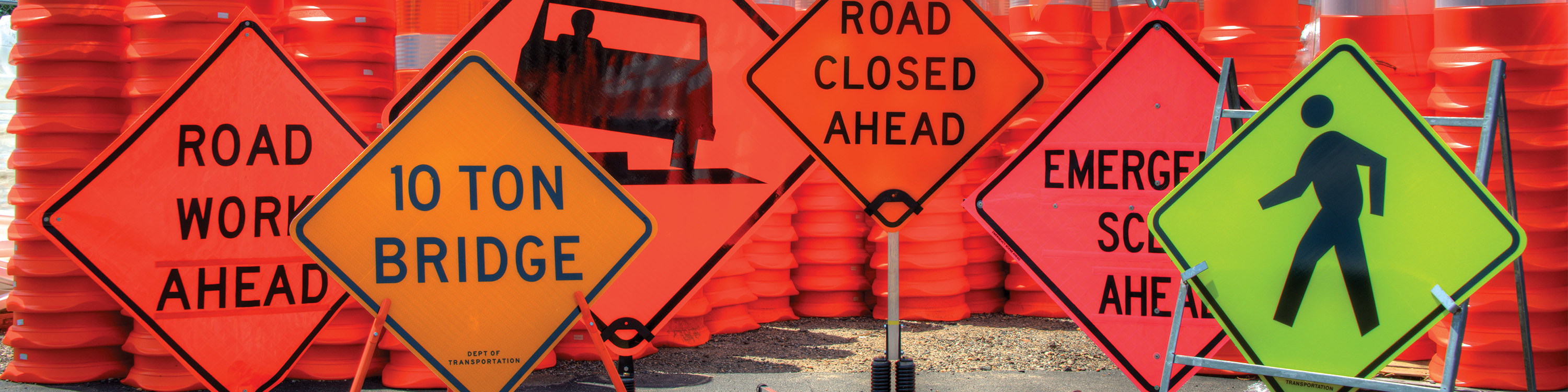

Rigid & Roll Up Signs / Stands
Our roll-up signs are lightweight, portable and easy to use.
Roll-up signs are perfect for on-the-go construction workers and contractors. All standard and any special legend signs are available in 36″ or 48″ roll-up signs.
- Roll-up signs are NCHRP 350 compliant when used with one of our NCHRP 350 compliant stands
- Fiberglass ribs, or cross bracing, feature a protective veil to prevent blooming and painful splinters
- The rib set is fastened at the center with a 1/4″ steel rivet and spring washer providing constant tension; it will not loosen or tighten with use the way nut and bolt assemblies do
- Lexan corner pockets are made of tough polycarbonate plastic for durability
- Corner pockets on the horizontal corners provide three rivet points for durability and a shallower pocket depth for easier deployment
- Back-to-back hook and loop strap for storage
- Overlays for changeable message signs are also available in all sign materials and colors
- Custom roll-up signs are also available on request
Standard Sign Legends / Symbols
When placing an order choose from:
- Size: 36” or 48”
- Colors: Orange or Coral (Pink)
- Materials: Non-reflective vinyl, Non-reflective mesh, Superbrite reflective, Diamond Grade reflective
- Specify MUTCD legend or special legend
Standard Sign Symbols Directional
Velcro overlays available.
Emergency Response Signs
Velcro overlays available.
Sign Stands
5012SS
WindMaster
Compact Collapse &
Wrap Sign System
4818K
WindMaster
4860K
WindMaster
4818NL
WindMaster Barrier
SA-10436
Median Barrier Bracket
STUF4
Tuffy 4 Legger Sign Stand
Tripod Sign
Stands
Compact Roll-up Sign Stand
- Lightweight, portable easy-to use
- Holds 36” & 48” roll up signs
- NCHRP 350 accepted
- Takes up only 1-cubic foot of storage space and is designed for use with roll-up signs only
- Roll-up signs attach to the 5012SS with a screw-lock sign bracket (included) – simply slide the vertical cross brace into the bracket channel and
secure the sign face by turning
the screw handle until the cross
brace fits tightly against the
pressure plate
> A single spring base design
and adjustable, telescoping
legs with kick-release buttons
- Comprised of an MDI compact sign and WindMaster sign stand (each sold separately)
- For use with 3612, 4814 or 5012 sign stands
- The sign quickly collapses down using the single trigger release button and wraps around the upright on the stand
- Sign stand and sign setup in less than 20 seconds
- Single Trigger Release: Signs that have hinged, integrated cross bracing with a single trigger release mechanism for rapid deployment and take-down.
- NCHRP 350 accepted
- Adjustable legs for stability on curbs or uneven terrain
- Kick-release/telescoping legs simplify set-up and handling
- Dual Spring base for strong initial tension resists twisting and turning of sign in high wind gusts
- Legs and upright made of .100” wall thickness aircraft aluminum
- Designed for rigid signs made of aluminum, wood or plastic
- Holds both rigid & roll-up signs
- Dual springs and telescoping upright
- Used with MDI’s Median Barrier Bracket (Model SA-10436 or SA-28305)
- Sign stand attaches easily to bracket with just two bolts
- Sign Stand accommodates a 36” or 48” roll-up or rigid sign
- Used with Model 4818NL
- The springs on the sign stand are fastened to the bracket with just two bolts
- The bracket and sign stand assembly firmly attach to median barrier with four, screw-in T-handle spikes
- Color: black
- Fits 5”-11” concrete median barriers
- SA-28305 also available to fit 9”-15”
- Holds rigid signs at least 30” wide up to 48” x 48”, including rectangle, square and diamond shapes
- Stand dimensions: 60” x 30” x 1”
- Fabricated from 1” aluminum angle or 12 gauge angle iron (dependent upon material availability)
- Stand folds flat for storage
- Holds 36” or 48” sign a minimum of 12” off ground
- Meets MUTCD specifications
- Easy setup
- 16 ga. tubular steel construction
- Orange powder coat finish
- Open footprint of 46” x 60”
- NCHRP 350 accepted
Accessories
IN81 Sign
Pedestal Base
SA-01729
Mounting Bracket
SA-10001
Mounting Bracket
SA-10436
Median Bracket
SA-27897 Flasher Bracket
- Fits u-channel, square or round posts
- Can be mounted permanently to a concrete or a paved surface or it can be used for temporary signs
- 15” Approximate weight: 3-4 lbs.
- The base comes with the hardware needed to attach your post to the base
- Color: Black Size: Fits 4818K, 4860K, 4884K and 5018 WindMaster® Sign Stands
- Shipping Weight: 1.4 lbs.
- Brackets are sold separately and two are required per sign face
- Brackets are held in place by screw clamps that attach to sign stand upright. Note: Two brackets are required
- Two-piece set that accommodates any roll-up sign face with standard 1.25” wide and thick fiberglass cross bracing
- Constructed of durable, rigid plastic 3/16” thick
- Brackets fit over top of sign stand upright and slide down over detent buttons
- Attaches to concrete median barriers that are 5”-11”W
- Used with Springs Model 4818NL
- The springs on the sign stand are fastened to the bracket with just two bolts
- The bracket and sign stand assembly attach firmly to median barrier with four, screw-in T-handle spikes
- Color: Black Size: Fits 5”-11” Concrete Median Barriers
- Shipping Weight: 18.15 lbs.
- SA-28305 also available (bigger)
- Holds any 36” or 48” diamond-shaped DuraLatch® Roll-Up Sign
- Has three heavy-duty, solid-tip steel posts that the Lift-The-Dot fasteners on the sign straps snap on it
- The posts hold sign securely while the straps allow it to expand and contract to stay taut
- For storing, cross bracing pivots to form one piece that the roll up sign wraps around with all WindMaster® Sign Stands
- Shipping Weight: 6.10 lbs.
- Use with WindMaster® Sign Stands Model Numbers 4818, 4860, 4884 and 5018
- These units are equipped with a 3-section flag bracket and the Flasher Bracket locks securely in place in the middle section of the flag bracket
- The opening in the top of the Flasher Bracket is used for attaching the flasher
