Our line of Solar and LED-enhanced Intelligent Warning Systems provide our customers innovative and environmentally-friendly solutions that enhance safety for all road users. Below is a list of Smart Activation Options. If you have further questions contact sales@gshpinc.com or simply call our toll free number at 800.338.5685.

Push Button

In-Road Warning Lights

  • Activated with less than 2 lbs. force
  • Provides two-tone audible confirmation and visual confirmation
  • Cannot be jammed or stuck in “on” position
  • Wind, hail and vibration have no effect
  • Superior grade pre-treatment and powder coat
  • Stainless steel button cap
  • Meets ADA, MUTCD and TAC requirements
  • Transient protection that meets and exceeds NEMA specifications
  • Remote mounting available

Toggle Switch

Smart Activation Methods

  • ON/OFF switch
  • Convenient control
  • Easy access

Key Switch

Key-Switch

  • Post or cabinet mount
  • ON/OFF two position

Time Clock Controller

Intelligent Warning Systems Activation Method

  • Windows-based program running from a laptop or PC (software and cable sold separately)
  • Simple solution for single BlinkerSign® management
  • Capable of programming in holidays and daylight savings time
  • Choose from eight different day types and 16 events per day
  • Ideal for school, business and industrial facility work schedules
  • Can program up to a 2 year calendar

Hand Held Transmitter/Receiver

Intelligent Warning Systems

  • TAPCO’s 418MHz digital receiver and transmitters guarantee you reliable, efficient operation and easy installation for multiple applications
  • Operates with a unique rolling code each time the switch is activated
  • Multiple applications with delay or no delay programming
  • 100 transmitters can be programmed to activate a single receiver
  • A single transmitter can operate up to eight separate wireless receivers
  • Range up to 700 feet

Environment

Intelligent Warning Systems

  • Can determine when the conditions are favorable for rain, snow and ice
  • Remote surface condition sensing

Over-Height Vehicle Detection

Smart Activation Methods

Provides secondary warning beyond existing signage. Detects over-height vehicles and warns drivers of an impending problem by triggering a BlinkerSign® warning system. Low speed and high speed options.

  • Bridges
  • Airport overhangs and walkways
  • Equipment yards
  • Logging trucks
  • Motion detection detects objects in motion
  • Presence detection detects objects at rest
  • Vehicle Speed Sensor
  • A low power draw Digital Signal Processing (DSP) based K-band radar for ITS sign activation and traffic calming
  • Tunnels
  • Railroads
  • Overpasses
  • Parking structures

Wireless Bollard

Intelligent Warning Systems

  • Pedestrians and bicyclists can passively trigger flashing BlinkerSign® LED signs, RRFB, BlinkerBeacon™ LED Beacons, in-pavement LEDs, and other ITS devices. Actuators are housed in anodized aluminum cabinets that can be secured to concrete or asphalt.
  • Install virtually anywhere, utilizing wireless control if needed
  • Designed to interface with ITS devices
  • Battery operated – no grid wiring required

Camera Detection

Camera-Detection

Provides secondary warning beyond existing signage. Detects over-height vehicles and warns drivers of an impending problem by triggering a BlinkerSign® warning system. Low speed and high speed options.

  • Overhead mount
  • Can be used to detect pedestrians or vehicles

Water Level Sensor

Intelligent Warning Systems

  • Detects rising water levels and triggers BlinkerSign® and other warning devices alerting drivers of flood conditions
  • Works independently of power grid, effective even during power outages
  • Adjustable water level activation
  • Works in saltwater and freshwater applications
  • Applications include frequently flooded areas, tidal zones, underpasses and hurricane zones

Presence Detector

Intelligent Warning Systems

  • Mountable between 8’ and 16’
  • Impervious to light, sun, light rain and light snow
  • Housing is rated NEMA-4s

Induction Loop

Induction-Loop

  • In-ground inductive loop, the most accurate form of vehicle detection
  • Can accurately detect motor vehicles or bicycles, will not be triggered by pedestrians
  • Can be hardwired AC or solar powered

Vehicle Speed Sensor

BlinkerChevron Curve Warning

A low power draw Digital Signal Processing (DSP) based K-band radar for ITS sign activation and traffic calming. It is the premier product in its class.

BlinkerBeam Wireless Controller

Detection

  • Operates license-free on 902-928 MHz Frequency Hopping Spread Spectrum (FHSS)
  • Stand-alone operation
  • Solar powered or 110 VAC operation
  • Fully programmable outputs
  • Terminal block for easy connectivity
  • Range up to 900 ft. with internal antenna, optional antenna for extended line of sight distance

Optical Emergency Vehicle Activation

Optional-Optical-Emergency-Veh-Activation

Optical receiver is compatible with optical signals from all Tomar Strobecom and GTT OPTICOM® emitters to automatically activate BlinkerSign® LED signs or BlinkerBeacon™ LED beacons.

BlinkLink

Intelligent Warning Systems

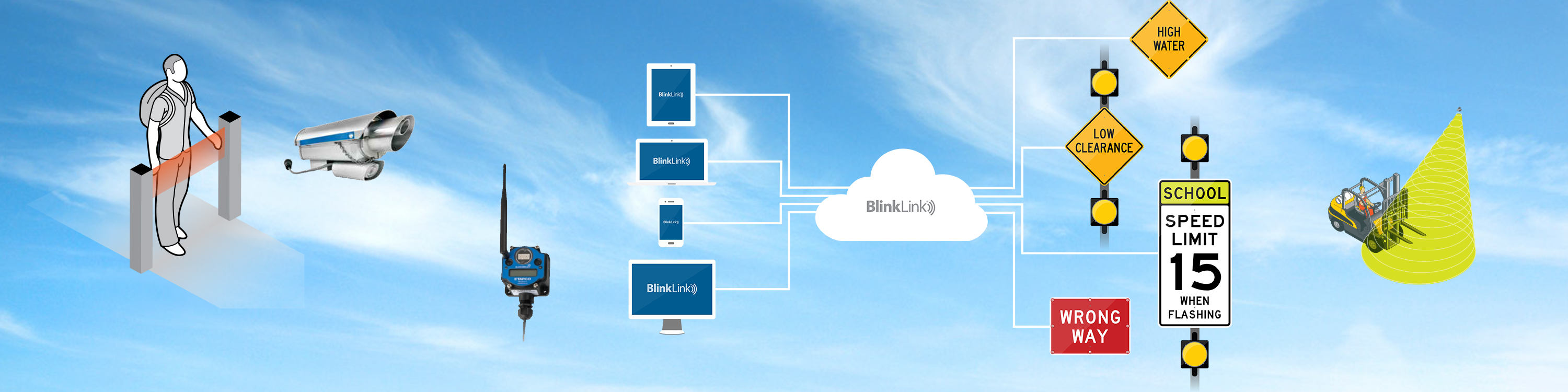

An easy-to-use, cloud-based application cities utilize to manage, schedule, control and monitor system-wide time clocks and intelligent warning systems. By collecting real-time data, BlinkLink® provides transportation officials the intelligence to respond immediately to ongoing traffic emergencies through Email and SMS alert notifications sent via TAPCO Wrong-Way Driver Detection Systems and other intelligent warning systems. Connected through reliable cellular networks, BlinkLink® is secured through encrypted communication.
