Silent Arrow Boards
Silent Arrow Boards Advanced Technology
Silent Arrow Boards and their advanced technology are state-of-the-art at Garden State Highway Products.

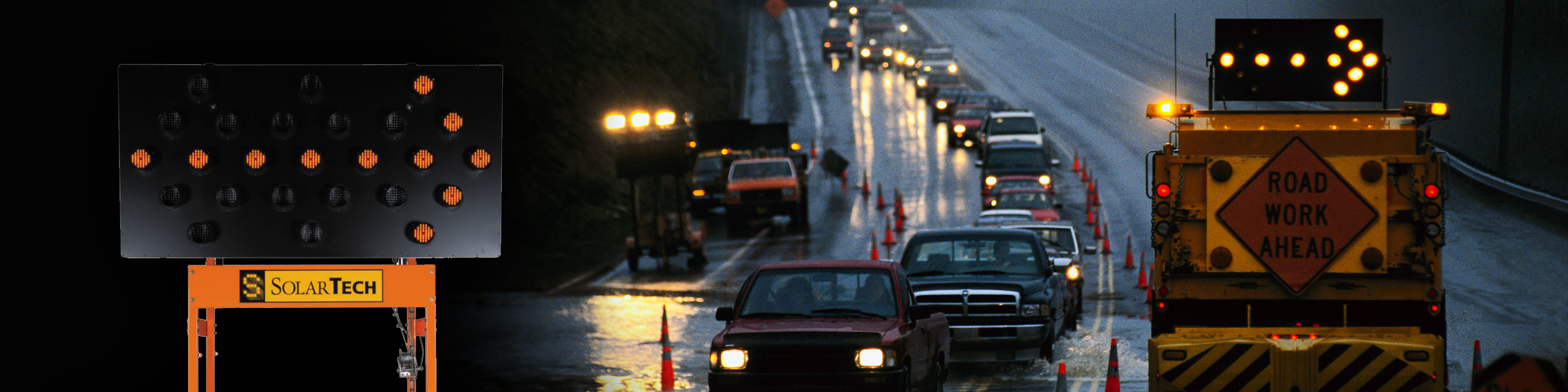

SolarTech® Silent Sentinel Arrow Boards
Now talk to your SolarTech® Arrow Boards… for FREE!
SolarTech® added a modem, GPS and free cellular service for the life of your arrow board. It’s an industry first, and it’s available now as standard equipment on every SolarTech® Message and Arrow Board.
Here’s how free remote communications helps you:
- View a permanent record of what was on each board
- Monitor battery voltage from your desk or smartphone
- See location of boards using GPS coordinates
- Get email notifications if a board moves
- Change arrow patterns remotely
SolarTech® boards make ITS a possibility today. Not ready? No worries. Its installed and ready when you are. No need to add modems and GPS chips later. And – bonus! – never pay for cellular service for the life of the board.
All models meet or exceed the standards for Flashing Arrow Panels as listed in the U.S. Federal Highway (FHWA) Manual or Uniform Traffic Control Devices (MUTCD). Specifications subject to periodic updates as required without notice.
Optional Easy-To-Use Controller
Control Module Displays
- Battery level
- Solar Charger status lamp intensity cellular status
- GPS Status
- Arrow and warning patterns can be set with the press of a button.
- Automatic fault protection is built in.
Details Trailer Mounted Panel Size 96″ x 48″ (Type C) Lamps LED – 15 or 25 Solar Array 40 watts Batteries Two (2) 6-volt heavy-duty deep cycle (GC-2) Length 100″ (254cm) Width 96″ (244cm) Height Traveling 92″ (234cm) Height Operating 134″ (340cm) Details Vehicle Mounted Display Type 15 or 25 Lamps Type B or Type C Mount Multiple mounting options (universal, pivoting, over-cab, skid, bed-rail, etc.) Installation Kits Self-contained portable or integrated, in-cab controls Lifts Manual or powered Battery Packs Auxiliary battery pack (300/600 AH) Lead Acid or Gel-Cell Battery Charge 45 amp 115 or 230 volt Solar Power Kits 40 watts Available Options Combination Coupler Removable, 2-inch ball and 2 1/2-inch pintle ring Adjustable Height Coupler 2-inch ball or 3-inch pintle, adjusts from 18 to 28 inches Solar Array 80 watts Batteries Four (4) Lead-Acid (flooded) or two (2) or four (4) Gel-Cell maintenance-free Auxiliary Battery Charge 115 VAC line-powered, 45 amp / 230 VAC line-powered, 45 amp Traffic Cone Carrier Holds standard 18 inch (45.7cm) and 28 inch (71.1cm) traffic cones
