Standard Barricades

Standard barricades are perfect for crowd control and road closures.

Barricades are critical tools for diverting traffic away from active construction areas. Available in a variety of materials, colors and sizes, Plasticade barricades are designed with the safety of drivers and construction personnel foremost in mind. They not only increase visibility of construction areas for drivers, they also provide a guide for orderly and predictable movement of traffic, a safety benefit for drivers and workers alike.Traffic Safety Barricades are easy to store and set up to help direct traffic or limit access indoors or outdoors. These products are designed for performance, durability, and convenience.

*All Options
> Accept two flashing lights
> Sold as kits or as separate parts

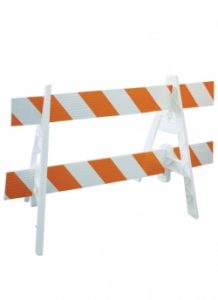

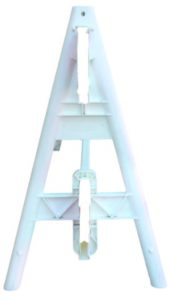

Omni A-Frame

Standard Barricades

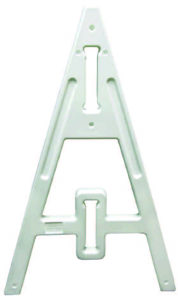

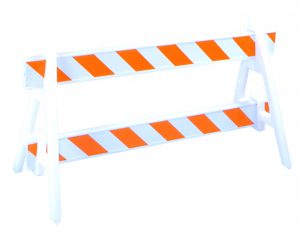

Plasticade Frame

Standard Barricades

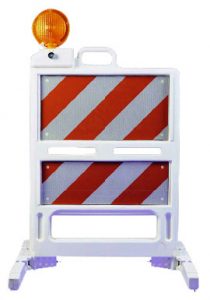

Safetycade

Standard Barricades

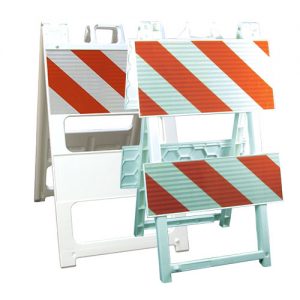

Plasticade Type I and II

Standard Barricades

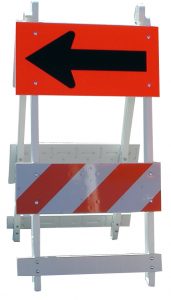

Fibercade
Type I and II

Standard Barricades

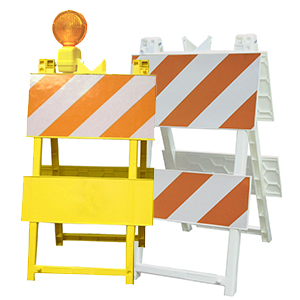

Econocade
Type I and II

Standard Barricades

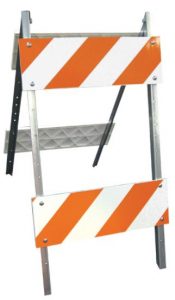

Combocade
Type 1 and II

Standard Barricade

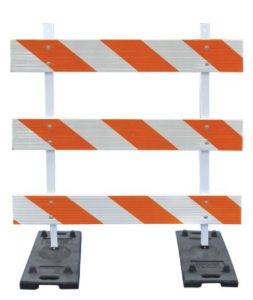

Power Post w/ Volcano
Rubber Base Type III

Standard Barricades

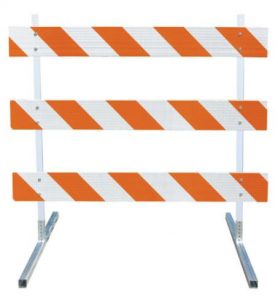

Power Post w/Steel
Legs Type III

Standard Barricades

Telespar
Type III

Standard Barricades

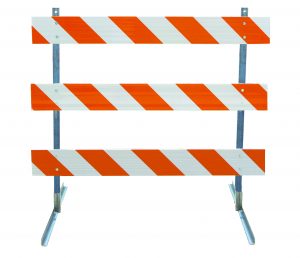

Angle Iron
Type III

Standard Barricade

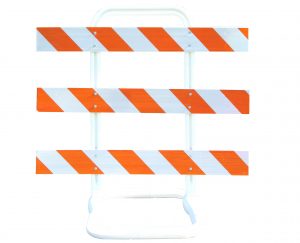

Sentinel
Type III

Standard Barricade

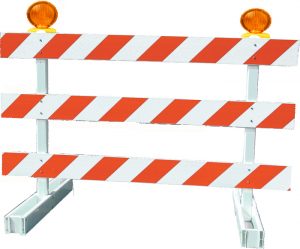

Break-Away
Type III

Standard Barricade

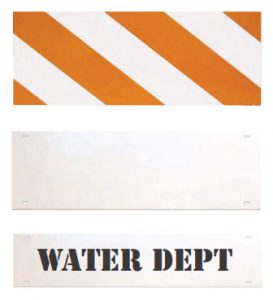

Econocade
Barricade Boards

Standard Barricade

Type III
Barricade Board

Type III Barricade Board

ADA Pedestrian
Barricade Strongwall

Standard Barricade
 Standard Barricades

  • Versatile A-Frame accepts many types of boards
  • Plasticade I-Beam Boards
  • Plasticade 1″x8″ Boards (Type III boards)
  • Other plastic boards (I-Beams, thin rails, panels)
  • Wood boards
  • 20% heavier that the Plasticade A-Frame barricade leg solid wall design
  • Customize nameplate with your name or logo
  • Stacking lugs make transportation and storage easy
  • Flashing light mounting receptacle on each leg
  • Use with one board or two
  • 1″x8″ boards are available in 4′, 6′, 8′,10′, and 12′ lengths
  • I-Beam boards are available in 6′, 8′, and 10′ lengths
  • Sold as sets or as component parts
  • Dimensions: 28.6″Hx44″W
  • Weight: 6 lbs.
  • Color: White

 Standard Barricades

  • Accepts only Plasticade® I-Beam boards
  • Molded hollow – may be weighed internally with dry sand
  • Stacking lugs – make transportation and storage easy
  • Flashing light mounting receptacle on leg
  • Use with one board or two
  • Sold in sets or as component parts
  • Dimensions: 42”Hx28”W
  • Weight: 5 lbs.
  • Color: White

 Standard Barricades

  • Collapsible plastic barricade that’s easy to set up and store
  • Stack more on your truck! – units use 65% less space than drums
  • Quick set-up – spring loaded feet quickly release for placement
  • Lies flat when hit
  • Replaceable sheeting panels – recessed panels are removable, just clip on new panels
  • Anti-skid pads on feet reduce movement in work zones
  • 7.5 lb. feet – filled with silica sand – optional ballast boots snap on feet adding 20 lbs. each
  • Molded-in light receptacle for “D” cell battery lights
  • NCHRP-350 Accepted, Meets MUTCD Standards
  • Dimensions: 33”Wx42.5”Hx3”D
  • Weight: 29 lbs., 69 lbs. with ballast boot
  • Color: White

  Standard Barricades

  • All plastic and maintenance free, never rusts, needs painting, or leg straightening
  • Molded hollow so it can be internally ballasted with up to 10 lbs. of dry sand
  • Molded handles with mounting holes for attaching flashing lights
  • Features “click lock” hinges for a positive interlock in the open position
  • Sandbag bar (if additional weight is required)
  • Stacking lugs keep stacked units from sliding
  • Names can be stenciled on the barricade for identification
  • NCHRP-350 Accepted, Meets MUTCD Standards
  • Dimensions: 25”W x 45”H
  • Weight: 16 lbs.
  • Colors: White, Yellow and Orange

The Plasticade Barricade is NCHRP-350 Accepted for use as a sign stand.
Use with signs up to 48” x 48” made of lightweight aluminum composite material

  Standard Barricades

  • All plastic barricade with a “double wall” design for strength and rigidity
  • Built from component parts, legs and boards, assuring easy replacement of damaged parts
  • Boards are available in three sizes (12”x24”, 8”x24”, 3”x24”)
  • Bottom board can carry a 35 lb. sandbag
  • Two flashing light mounting receptacles
  • Names can be stenciled on the barricade for identification
  • NCHRP-350 Accepted, Meets MUTCD Standards
  • Dimensions: 24”W x 43.3”H
  • Weight: 16 lbs.
  • Color: White

  Standard Barricades

  • All plastic, economical barricade, that is strong and durable
  • Solid wall design: legs and boards are molded in one piece
  • Easy to handle, pack, and transport
  • Rust free and impact resistant
  • Names can be stenciled on the barricade for identification
  • NCHRP-350 Accepted, Meets MUTCD Standards
  • Dimensions: 24.4”W x 42.6”H
  • Weight: 13.2 lbs.
  • Color: White

  Standard Barricade

  • Boards can be replaced
  • Legs can be replaced or repaired
  • Standard 45” steel legs, 14 gauge thickness, galvanized
  • White injection molded boards are strong and dense, reinforced with our “diamond” design
  • Boards will not bend, warp, crack, splinter, or peel
  • Available in 24”W x 12”H, 8”H, or 6”H
  • Names can be stenciled on the boards for identification
  • Bolt holes are molded into the plastic boards, making board replacement quick and easy
  • NCHRP-350 Accepted, Meets MUTCD Standards
  • Dimensions: 24.4”W x 42.6”H

  Standard Barricades

  • No Sandbags Needed – Deter Metal Thieves
  • Plastic polymer upright
  • Lightweight but strong
  • Impact resistant
  • No rust or corrosion
  • Predrilled universal mounting holes
  • Quick removal of uprights from rubber base – Short term or permanent placement
  • Plastic 1” x 8” boards are available in 4’, 6’, 8’, 10’, and 12’ lengths
  • Boards may be sheeted (on one or both sides) or unsheeted
  • Accepts two flashing lights
  • Sold in kits or as component parts
  • NCHRP-350/MASH Accepted, Meets MUTCD Standards

Volcano rubber base weighs 43.25 lbs.

  • Contains steel base plate for upright insertion
  • Two carry handles
  • Stacks for transportation and storage
  • Recycled rubber

  Standard Barricades

  • Use with volcano rubber base, Telespar feet, angle iron feet
  • Plastic polymer upright
  • Lightweight but strong and 66% lighter than steel square tube posts
  • Impact resistant
  • No rust or corrosion
  • Predrilled universal mounting holes
  • NCHRP-350/MASH Accepted, Meet MUTCD Standards

Two Options Available  Standard Barricades
Telespar® uprights with Telespar® feet
Telespar® uprights with Angle Iron feet

  • Telespar® is galvanized for superior corrosion protection,14 gauge, hot rolled high carbon steel
  • Angle iron feet are 10 gauge, galvanized
  • Universal mounting holes, pre-punched 7/16”
  • Square shape provides superior wind load capabilities and inhibits warping
  • Quick removal of uprights from feet, allows for short term or permanent placement
  • Easy to assemble and replace parts if necessary
  • Plastic 1” x 8” boards are available in 4’, 6’, 8’, 10’, and 12’ lengths
  • Boards may be sheeted (on one or both sides) or unsheeted
  • Telespar and Angle Iron uprights are 63”H
  • Accepts two flashing lights
  • Sold in kits or as component parts
  • NCHRP-350 Accepted, Meets MUTCD Standards

 Standard Barricade

  • Use With Telespar Feet or Angle Iron Feet
  • 10 gauge, galvanized
  • Predrilled universal mounting holes
  • NCHRP-350 Accepted, Meet MUTCD Standards

 Standard Barricade

  • Base consists of 2 pieces, upright and base, that snap together, no hardware required
  • Available with two board lengths, 1” x 8” boards, 4’ or 6’ long
  • Boards can be purchased sheeted (on one or both sides) or unsheeted
  • Base can be internally ballasted with sand, sandbags, or water in warmer climates
  • NCHRP-350/MASH Accepted, Meets MUTCD Standards

  Standard Barricade

  • All plastic
  • Collapsible, lies flat for storage and transport
  • Available with five board lengths, 1”x 8” boards, 4’, 6’, 8’, 10’, or 12’ long
  • Easier to transport, install, and store than wood or steel Type III Barricades
  • Boards are available sheeted (one or both sides) or unsheeted
  • Attach two flashing lights
  • Barricades are sold in kits with hardware included or as component parts
  • NCHRP-350/MASH Accepted, Meets MUTCD Standards

  Standard Barricade

  • Solid plastic boards will not bend, warp, crack, splinter, or peel
  • Bolt holes are molded into the boards
  • Names can be stenciled on the boards for identification
  • Easily mounted on all styles of steel legs
  • Available in three heights – 24”W x 12”H, 24” x 8”H, and 24”W x 6”H
  • Boards are .63” thick



  • 1” x 8“ plastic boards come in 4’, 6’, 8’, 10’, and 12’ lengths
  • High density polyethylene material resists fading, chipping, and splintering
  • Flat surface displays retro-reflective sheeting, complies with MUTCD requirements
  • Hollow core extruded design
  • Internal walls provide lightweight strength and durability
  • Can be used in various generic Type III Barricade designs accepted by the FHWA

ADA Pedestrian Barricade Longitudinal Channelizing Device Standard Barricade

  • ADA Compliant, no trip hazard for pedestrians
    – meets or exceeds ADA Guidelines and MUTCD Standards
  • No sandbags needed!
  • Linking sections are made up of two pieces that securely fit together
    – Top Wall – rugged polyethylene
    – Bottom Base – 43 lb. self weighted black base, with carry handle
  • Modular system can be shaped to any layout
  • Stable in windy conditions
  • Quick and easy to install
  • Anti-tamper linking system is difficult for unauthorized personnel to dismantle when linked
  • Compact stacking lowers transportation costs
  • Available in orange or white, with or without retro-reflective sheeting
  • NCHRP-350/MASH Accepted, Meets MUTCD Standards
  • Specifications for single section with base
  • Dimensions: 38”Hx43”Lx15.25W”
  • Weight – 51 lbs.
  • Sheeting area is 6” x 30” on each side
