TraffiCalm SignAlert

SIgn Alert Header

The next evolution in road signage.

Applications: Stop Intersections • High Incident Intersections • Rural Roads • Dangerous Curves • High Accident Areas


SignAlert GEN 2 LED Enhancement System

The traffic industry has long recognized that many sign scenarios (placement, visibility, etc.) are more critically important than others. There has been a need in the industry for a simple and affordable way to retrofit existing signs with additional levels of warning for those situations that demand them – and to do this in such a way that the additional alert system can be motion activated to conserve power and extend the life of the LEDs.

  • LED rings field retrofit onto almost any existing sign
  • Very affordable
  • 100 Level auto-dimming
  • Solar or AC power options
  • Configuration app works on nearly any Wi-Fi phone, tablet, or PC
  • High intensity LEDs visible day or night (visible up to 2 miles at night)
  • Hassle-free installation. (No dirt moved means less permits, and streamlined implementation)
  • LED flashers face mount on existing signs with permanent bonding tape and/or mechanical fasteners
  • Scheduling functionality expands system versatility and performance
  • Field replaceable batteries MUTCD Compliant

Why TraffiCalm?
SignAlertTM GEN 2 LED Enhancement System

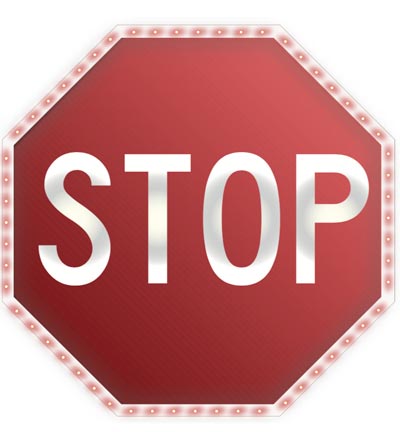

SignAlert Stop Sign Enhancement Ring

Illumination

  • LEDs configured around perimeter of sign, within border (fully MUTCD
    compliant design
  • LED pitch: 1.9”
  • Red LEDs with 30 degree viewing angle
  • DG3 white reflective sheeting applied to ring face for natural appearance

Compatibility

  • Integrates with all TraffiCalm SA300 controllers and collaborators and can be push button, speed (radar), time clock or sensor activated

Physical Description

  • Available sizes: 24”, 30”, 36” or 48”
  • Retrofits to any existing Stop sign manufactured to MUTCD requirements
  • Mounting: all LED hardware mounted within the white border of the sign. Mounted either with adhesive backing or included self tapping screws. Rivets may be utilized to improve tamper resistance
  • MUTCD compliant LED placement and usage
  • 10 ft. single cable extension to reach controller or collaborator


Click to Learn More About the Enhancement Ring

800.338.5685 • Call our experienced Sales Team.

Specifically engineered to enhance a single, standalone sign. Examples include speed zone reductions, advance warnings, and speed limit regulation.


Feature Highlights:

  • Configuration of complex scenarios made easy in app
  • Fastest implementation with intuitive wireless technology
  • Individual units easily field upgraded or replaced
  • Schedulability to warn drivers at just the right times
  • Audible push button compatibility

Today’s pinnacle of sign enhancement. Designed to wirelessly unify signs and sensors to provide unparalleled flexibility of application and use. Examples include sequential chevrons, conflict intersection warning, pedestrian activation, and road condition warnings.


All the benefits of the Basic System, plus:

  • Radio collaboration between signs and input sensors
  • Configuration of complex scenarios made easy in app
  • Fastest implementation with intuitive wireless technology
  • Individual units easily field upgraded or replaced
  • Schedulability to warn drivers at just the right times
  • Audible push button
