TrafficJet Print System

Modernize your sign shop with this simple, clean, and cost-effective print system.

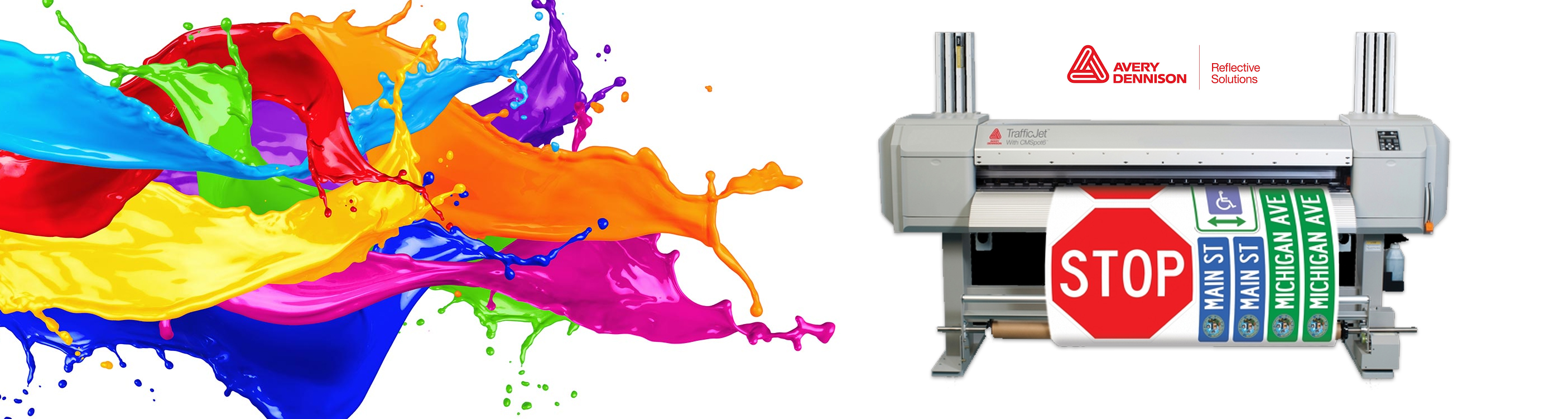

The TrafficJet™ 1638X printer is built on a proven printer platform and optimized with CMSpot6™ inks for all traffic control, wayfinding, and custom sign applications.
You get more with the TrafficJet™ Print System—ASTM and MUTCD specification compliance, industry-leading print speeds and sign warranties, and graffiti protection as a standard. Just what you’d expect from the leader in digital traffic sign printing.
Unrivaled Performance
- Fast printing up to 162 ft2 per hour
- Prints extraordinary details
- 15-year OmniCube™ traffic sign warranty
- 12-year High Intensity Prismatic traffic sign warranty
- 10-year custom color warranty using CMSpot6 Inks
- Built-in graffiti cleanability with OL1000 film
Improved Sign Features
- Add multi-color logos for agency identification and branding
- Sequential addressing and numbering
- Fine detail allows agency name to protect against theft; fabrication date, and bar coding for improved sign maintenance
Improved Shop Efficiency
- Precision, automated printing makes better use of your labor force
- Save on capital costs by eliminating large and complex inventory of roll goods needed for sign cutting and screen printing
Shop Upgrades
- TrafficJet Laminator for superior, bubble-free application
- TrafficJet dryer for faster printing and lower ink consumption
- TrafficJet Printer fume extractor for less ventilated shops
- Summa F1612 flatbed for quick and easy contour cutting
- CWT® Worktools table for easy layout and application
Complete Print System
- Traffic sign production process designed and supported by Avery Dennison technical personnel
- Professional on-site installation and training
- Custom FlexiSIGN and PRINT Avery Dennison Edition sign making and production software
- Optional subscription to SignCentral™ MUTCD Sign and Font Library from TAPCO®
- Access to online support videos and guides
- Exclusive access to the Certified Digital Traffic Converter (CDTC) program for quality control
CWT Work Table
TrafficJet Laminator
Brand Your Street Signs
Specifications
- Print method: Drop-on demand, piezo drive method
- Number of nozzles: (180 × 8 rows) × 2 staggered heads
- Ink Type: TrafficJet™ Eco-Solvent spot colors and Mutoh Eco-Ultra ink (CMYK)
- Variable Dot: Yes
- Media auto cut: Standard
- Print Modes: 1440/720/540/360dpi 10 + modes
- Color Configuration CMSpot6
- Number of Print Heads: 2
- Maximum Print Speed / Resolution: 1,012 ft2/hr
- Maximum Resolution: 1440 dpi
- Traffic Sign Print Speed: Up to 87.5 ft2/hr standard
- Up to 162 ft2/hr with dryer
- Head Height: Low 1.5mm / Medium 2.5mm / High 4.0mm
- Maximum Media Width: 64”
- Maximum Print Width: 63.6”
- Maximum Media Roll Weight: 66 lbs.
- Media Roll Diameter / core: 6” maximum / cores 3” or 2”
- Take-up System: Standard
- Minimum Droplet Size: 3.5pL Software FlexiSIGN and PRINT Avery Dennison Edition
- Power Requirements: 100–120V / 20A
- Operating Temperature: 68°F–89.6°F
- Operating Humidity Range: 40%–60%
- Dimensions: 106”W×35”D×50”H
- Weight: 407 lbs. / Stand: 75 lbs.
- Weight: 728 lbs.
- Limited Warranty: 1 year
