Truck-Mounted Attenuators

Scorpion’s modular design-creates an unbeatable standard of performance.

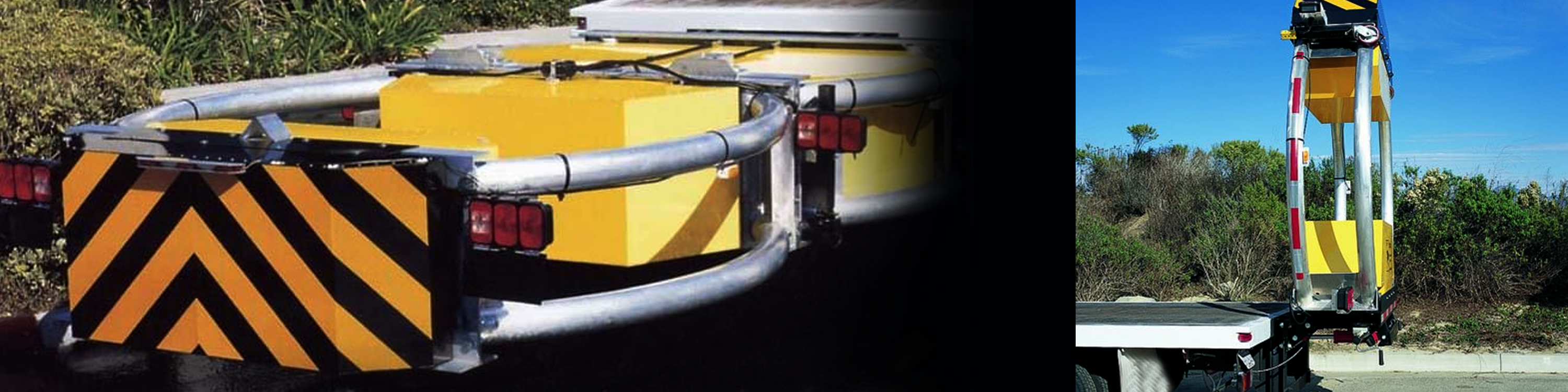

The Scorpion TMA consists of strut and cartridge sections that are linked together on a support frame. The curved side rails are made from corrosion resistant aluminum tubes, which offer full width impact protection along the entire length of the unit. The side rails were designed to re-direct errant vehicles away from the rear of the truck (coffin corner). Other manufacturers Crash Attenuator models have little or no side-angle impact protection.
The aluminum boxes are filled with a moisture proof, aluminum honeycomb material. The boxes, together with the curved side rails, absorb the energy from an impacting vehicle. The aluminum boxes are painted with a bright yellow powder-coated finish, for lasting durability.

The TrafFix Devices’ Scorpion TMA has been tested and has PASSED ALL optional and mandatory requirements suggested in the NCHRP-350 Report for TL-3. Additionally, the Scorpion TMA has passed the UKTD49, 68 mph test. The Scorpion TMA has successfully passed a “worse case” side angle re-directive impact test – this goes beyond all governmental testing requirements. Full details available upon request.

Contact our Sales team today to discuss your project! Call 800.338.5685 or email sales@gshpinc.com

Model A TL-2

truck mounted attenuators

Model C-90 TL-3

truck mounted attenuators

Model C-TL-3

truck mounted attenuators

The Scorpion TMA Model A utilizes only the cartridge section providing impact protection up to 45 mph. It incorporates a modular design, which can be upgraded to a Model C or Model C-90 (to meet NCHRP-350, TL-3 requirements), by simply adding the strut section.

  • Weight: 760 lbs.
  • Length Travel/Storage: 3’, Deployed 8’ 8”
  • Width: 8’
  • Height: Travel/Storage 11’, Deployed 1’
  • Tests Passed: 2-50, 2-51

The Scorpion TMA Model C-90 folds just past the 90-degree position (when folding over the truck bed is not desired). This feature allows for easy transit in the upright position. The rear strut is raised 10-degrees for added mobility and ground clearance, making it ideal for safely clearing exit ramps, driveways and other inclined surfaces in the stored or travel position. The Scorpion TMA Model C-90 provides TL-3 impact protection.

  • Weight: 1,975 lbs.
  • Length: Travel/Storage 3’ 1”, Deployed 14’ 9”
  • Width: 8’
  • Height: Travel/Storage 14’ 2’, Deployed 1’
  • Tests Passed: 3-50, 3-51, 3-52, 3-53

The Scorpion TMA Model C folds up and over the bed of flat bed, stake bed, or dump trucks. The Model C with its compact design and balanced weight distribution makes it ideal for high-speed travel. The Scorpion TMA Model C provides TL-3 impact protection. Side mounts are also available.

  • Weight: 1,975 lbs.
  • Length: Travel/Storage 2’ 5”, Deployed 13’ 10”
  • Width: 8’
  • Height: Travel/Storage 10’ 6”, Deployed 1’
  • Tests Passed: 3-50, 3-51, 3-52, 3-53
