Vandal-Proof

Standard Hardware

Vandal-Proof Hardware for Mounting Signs
This hardware aids in eliminating theft and vandalism to signs. This section includes various sizes of set screws, nuts, and rivets which are stainless steel, zinc plated or aluminum. We also offer a full line of vandal-proof tools.

carriage bolt

Carriage Bolt

  • Length: 1-1/2”, 2”, 2-1/2”, 3”
  • Size : 3/16”, 3/8”, 5/16”
  • Tamper-Resistant when used with a tamper resistant nut
  • Material: aluminum, stainless steel and zinc plated

VPA12 Vandal-Proof Bolt

VPA12 Vandal-Proof Bolt

  • Length: 1/2”
  • Size: 5/16”
  • Twelve point drive
  • Anodized finish
  • Requires T43 tool
  • Material: aluminum

BHP76 Vandal-Proof Button Head Bolt

BHP76 Vandal-Proof Button Head Bolt

  • Length: 3/4”
  • Size: 5/16”
  • 5/32” pinned hex access
  • Requires T100 or T handle tool
  • Material: stainless steel

Vandal Proof One Way Bolt

Vandal-Proof One Way Bolt

  • Length: 5/16”, 2”, 2-1/2” or 3” one way bolt
  • Use with breakaway nut
  • Remove with special screwdriver
  • Material: aluminum

Vandal-Proof Breakaway Nut

Vandal-Proof Breakaway Nut

  • Size: 5/16”
  • Threaded portion is tapered
  • Material: aluminum

Vandal Proof Set Screw

Vandal-Proof Set Screw

  • Size: 5/16”
  • Pinned hex recess
  • Knurled point
  • Requires T100 or T handle tool
  • Material: stainless steel, zinc plated

Torx Bolt

Torx Bolt

  • Length: 1-1/4”, 1-1/2”, 2” & 3”
  • Size: 5/16”, 3/8”, 1/4”, 10-24
  • Material: stainless steel

Trident Nut

Trident Nut

  • Size: 3/8”, 5/16”, 1/4”, 10-24
  • For use with Torx Bolt
  • Material: stainless steel

#20 Trident Nut Drive Socket

#20 Trident Nut Drive Socket

  • Size: 3/8”
  • Fits trident nut sizes: #10-24, 1/4”-20

#30 Trident Nut Drive Socket

#30 Trident Nut Drive Socket

  • Size: 7/8”
  • Fits trident nut sizes: 5/16”, 3/8”

Torx Bits

Torx Bits

  • Size: 5/16”, 1/4”, 3/8”, #10
  • Use with Torx Bolt

Tools

T100 Allen Wrench Tool

T100 Allen Wrench Tool

  • Works with standard set screws having a 5/32” socket, with or without center pin
  • Hollow-body design works with vandal resistant set screws and vandal-resistant button head bolts

T Handle Tool for Vandal Proof Button Head Bolt

  • Hollow-body design works with vandal-resistant set screws and vandal-resistant button head bolts
  • Black oxide finish with orange T handle for easy gripping

T43 Tool

  • Internal twelve point drive to wrench a VPA12 bolt

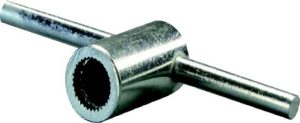

T2 Tool

  • Special installation tool for fluted nut

Square Post Breakaway Hardware

2in Corner Bolt

2″ Corner Bolt

  • Size: 5/16”x 2”
  • Post size 1-1/2” & 1-3/4” Square
  • Material: zinc plated

2.5 corner bolt

2-1/2″ Corner Bolt

  • Size: 5/16”x 2-1/2”
  • Post size 2” Square
  • Material: zinc plated

3 in corner bolt

3″ Corner Bolt

  • Size: 5/16”x 3”
  • Post size 2-1/4” & 2” Square
  • Material: zinc plated

Serrated Flange Nut for Corner Bolt

Serrated Flange Nut for Corner Bolt

  • Size: 5/16”
  • Material: zinc plated

Hardware for Overhead Guide Signs

Hex Bolt-Stitch Bolt

Hex Bolt-Stitch Bolt

  • Length: 3/4”
  • Size: 3/8”
  • Material: stainless steel, aluminum, galvanized

Hex Nut-Stitch Nut

Hex Nut-Stitch Nut

  • Size: 3/8”
  • Material: stainless steel, aluminum, galvanized

Nylock Nut

Nylock Nut

  • Size: 3/8”
  • Material: stainless steel, aluminum, galvanized

Post Clip

Post Clip

  • Proper clamping on all post flanges
  • Material: aluminum

Flat Washer

Flat Washer

  • Size: 3/8”
  • Material: stainless steel, aluminum, galvanized

Rectangular Head T-Bolt

Rectangular Head (T-Bolt)

  • Length: 1-3/4”
  • Size: 3/8”
  • Material: stainless steel, aluminum, galvanized
