TrafficJet Laminator
Specifications
- Print method: Drop-on demand, piezo drive method
- Number of nozzles: (180 × 8 rows) × 2 staggered heads
- Ink Type: TrafficJet™ Eco-Solvent spot colors and Mutoh Eco-Ultra ink (CMYK)
- Variable Dot: Yes
- Media auto cut: Standard
- Print Modes: 1440/720/540/360dpi 10 + modes
- Color Configuration CMSpot6
- Number of Print Heads: 2
- Maximum Print Speed / Resolution: 1,012 ft2/hr
- Maximum Resolution: 1440 dpi
- Traffic Sign Print Speed: Up to 87.5 ft2/hr standard
- Up to 162 ft2/hr with dryer
- Head Height: Low 1.5mm / Medium 2.5mm / High 4.0mm
- Maximum Media Width: 64”
- Maximum Print Width: 63.6”
- Maximum Media Roll Weight: 66 lbs.
- Media Roll Diameter / core: 6” maximum / cores 3” or 2”
- Take-up System: Standard
- Minimum Droplet Size: 3.5pL Software FlexiSIGN and PRINT Avery Dennison Edition
- Power Requirements: 100–120V / 20A
- Operating Temperature: 68°F–89.6°F
- Operating Humidity Range: 40%–60%
- Dimensions: 106”W×35”D×50”H
- Weight: 407 lbs. / Stand: 75 lbs.
- Weight: 728 lbs.
- Limited Warranty: 1 year
Related products
-

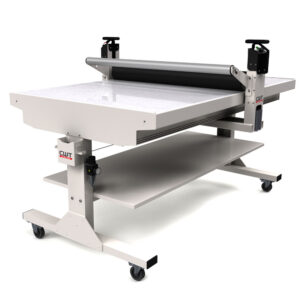

TrafficJet Print SystemCWT Work Table
